What are the main components of an argon pressure regulator? What are their functions?

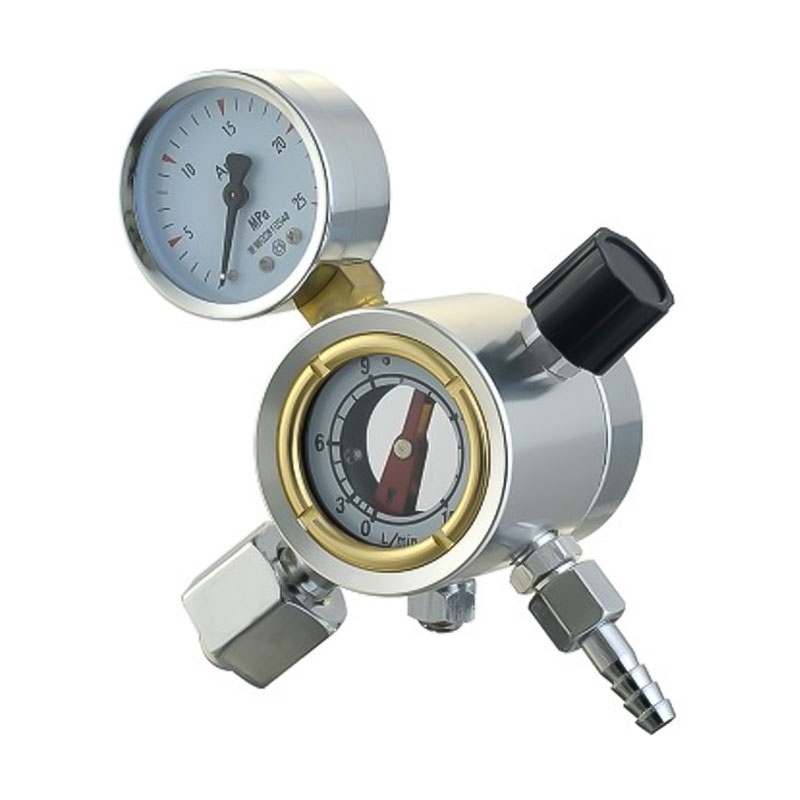

An argon pressure regulator is a key device for controlling the pressure and flow rate of argon gas. It mainly consists of several core components, each with its unique function and purpose, ensuring the stability, safety, and accuracy of the regulator in high-pressure gas environments.

High-Pressure Inlet Interface

• Function: The high-pressure inlet interface is where the argon pressure regulator connects to the gas cylinder. High-pressure gas from the argon cylinder enters the regulator through this interface. It typically uses a threaded connection to ensure a tight and safe gas inflow.
• Features: This interface is designed to ensure a secure and reliable connection to the gas cylinder, preventing gas leakage.

High-Pressure Gauge

• Function: The high-pressure gauge displays the pressure of the argon gas inside the cylinder. It helps the operator monitor cylinder pressure changes in real time so that the cylinder can be replaced promptly when the pressure approaches the low limit.
• Features: High-pressure gauges must be able to withstand high pressure and ensure accurate readings for precise monitoring of gas conditions.

Control Valve

• Function: The control valve is one of the core components of a pressure reducer, used to control and regulate gas pressure, reducing it from high-pressure cylinders to working pressures suitable for industrial applications. Control valves are typically adjusted by rotation, allowing for precise setting of the desired pressure.
• Features: Control valves require highly precise design to ensure stable and unfluctuating airflow, avoiding safety risks in industrial processes caused by pressure instability.

Diaphragm and Spring System

• Function: The diaphragm and spring system work together to regulate airflow and control output pressure. The diaphragm adjusts the valve's opening and closing according to changes in input pressure, maintaining a stable output pressure. The spring provides the necessary reaction force to ensure proper diaphragm operation.
• Features: The diaphragm material must be pressure-resistant and wear-resistant, and the spring's stiffness must be compatible with the gas pressure to ensure precise control of the output gas pressure.

Low-Pressure Gauge

• Function: The low-pressure gauge displays the pressure of the regulated output gas. It helps users confirm that the pressure of the depressurized gas is within the predetermined operating range. It is usually equipped with a regulating valve, allowing users to make precise adjustments as needed.
• Features: The low-pressure gauge needs to have high accuracy and stability to ensure that the output gas pressure accurately reaches the required value.

Outlet Interface

• Function: The outlet interface is the outlet of the argon pressure regulator. The regulated argon gas flows through this interface to welding, cutting, or other industrial equipment. The outlet is usually equipped with a threaded or quick-connect fitting to ensure a tight connection to the pipeline or equipment.
• Features: The outlet interface design needs to ensure that the gas does not leak while adapting to the interface requirements of different equipment.

Safety Relief Device

• Function: To prevent excessive pressure from causing injury to equipment or personnel, the argon pressure regulator is usually equipped with a safety relief device. When the pressure inside the pressure regulator exceeds the safety limit, the pressure relief device automatically releases the excess gas to ensure system safety.
• Features: The pressure relief device needs to respond quickly and have high reliability to prevent equipment damage or safety accidents caused by excessive pressure.

How ​​is the safety of argon pressure regulators ensured under high pressure and low temperature environments?

Argon pressure regulators typically operate under high pressure and low temperature environments, which places stringent requirements on the safety and stability of the equipment. To ensure the normal operation of the equipment, a series of safety measures must be implemented.

Safety Assurance under High Pressure Environments

• High Pressure Resistance Design: One of the main design tasks of argon pressure regulators is to withstand high-pressure gas from argon cylinders. To prevent the regulator from malfunctioning or exploding due to high pressure, all regulator components, especially regulating valves, diaphragms, and connection interfaces, must be made of high-strength, high-pressure-resistant materials.
• Overpressure Protection: Argon pressure regulators are typically equipped with overpressure protection devices, such as safety relief valves. Once the internal pressure exceeds the set safe range, the relief device will automatically release gas to prevent equipment damage or danger.
• Gas Flow Control: To avoid abnormal system pressure caused by excessive gas flow, the pressure regulator employs a precise airflow control system to maintain a stable gas supply and pressure.

Safety Assurance in Low-Temperature Environments

• Cryogenic Material Selection: Argon is a liquefied gas. At extremely low temperatures, the evaporation process of argon exposes the pressure regulator components to the cryogenic environment. Therefore, the pressure regulator material must be selected from low-temperature resistant, embrittlement-resistant alloys or stainless steel to avoid brittle fracture at low temperatures.
• Heat Exchange Design: In cryogenic environments, rapid gas flow inside the pressure regulator can lead to excessively low temperatures. Therefore, heat exchange measures are typically incorporated into the design, using appropriate structural design to prevent the pressure regulator from being affected by excessively low temperatures, thus maintaining normal gas flow and regulation accuracy.
• Anti-freeze System: Some high-precision pressure regulators are equipped with anti-freeze devices to prevent the pressure regulator from freezing or condensing due to low temperatures, which could affect its performance.

Integrated Temperature and Pressure Control

• Automatic Adjustment System: To cope with the impact of temperature changes on pressure, argon pressure regulators are often equipped with automatic pressure regulation functions. When temperature changes cause gas pressure fluctuations, the pressure regulator automatically adjusts the output pressure to maintain the stability of the gas supply.
• Insulation and Thermal Insulation Design: During high-pressure gas flow, some components of the pressure regulator experience a cooling effect due to gas expansion. To prevent the low-temperature effect from affecting equipment performance, insulation and thermal insulation layers are incorporated into the pressure regulator design, ensuring normal operation at low temperatures.

How ​​Does the Design of an Argon Pressure Regulator Affect its Performance in Welding or Other Industrial Processes?

The design of an argon pressure regulator directly affects its performance in welding or other industrial processes, especially in the precise control of gas flow and pressure. A high-quality argon pressure regulator not only improves operational safety but also significantly enhances the efficiency and stability of industrial processes. As a leading manufacturer of industrial pressure regulating equipment, Yuyao Hualong Welding Meter Factory designs its argon pressure regulators with a comprehensive consideration of advanced technology and industry needs, ensuring excellent performance even under high pressure and low temperature conditions, meeting diverse customer application requirements.

Precise Pressure Regulation and Flow Control: Enhancing Industrial Efficiency

• Technological Innovation and Precise Control: Yuyao Hualong Welding Meter Factory employs advanced pressure control technology in the design of its argon pressure regulators. These technologies ensure that the regulator can precisely regulate the output pressure and flow of argon, meeting the stringent requirements of industrial processes such as welding and laser cutting. For example, the high-precision regulating valves used by Yuyao Hualong Welding Meter Factory provide very fine pressure regulation, ensuring a stable gas supply for each batch of operations and thus avoiding quality problems caused by unstable gas flow.
• Innovation-Driven: During the design process, the R&D team at Yuyao Hualong Welding Meter Factory combined deep industry knowledge with cutting-edge engineering technology to meticulously debug the flow control system of the pressure regulator, ensuring that the argon pressure regulator maintains high efficiency and stable performance even under extreme operating conditions. This innovation helps industrial users optimize production processes, improve efficiency, and reduce resource waste.

Vibration and Shock Resistance Design: Enhancing Reliability

• Rugged and Durable Structural Design: Welding and other industrial operations are often accompanied by vibration, shock, and high-temperature environments, requiring argon pressure regulators to have excellent vibration and shock resistance. The argon pressure regulators from Yuyao Hualong Welding Meter Factory are specifically designed with these challenges in mind, using durable materials (such as high-strength stainless steel) and optimizing the internal structure to ensure stable operation for extended periods, even in harsh environments.
• Precision Design of Materials and Construction: The company optimizes the outer shell, internal components, and airflow channels of the argon pressure regulator to minimize argon flow variations even in environments with frequent vibrations, ensuring safety and stable gas supply during operation.

Safety Design and Leakage Prevention Mechanisms: Ensuring Operational Safety

• Multiple Safety Protections: Yuyao Hualong Welding Meter Factory prioritizes the safety of its pressure regulators, incorporating multiple safety protection mechanisms such as a built-in pressure relief valve and a gas leak monitoring system. When system pressure exceeds limits or a gas leak occurs, the pressure regulator automatically releases excess gas to prevent equipment damage or accidents. This design significantly enhances operator safety, especially in high-pressure operating environments.
• Optimized Sealing Technology: To further reduce the risk of argon leakage, Yuyao Hualong Welding Meter Factory has refined the sealing technology of its pressure regulators. The company uses high-quality sealing gaskets and O-rings that are heat-resistant and corrosion-resistant, ensuring no leakage occurs during high-pressure gas flow. Furthermore, optimized gas flow channels and sealing designs help reduce potential safety hazards caused by unstable gas flow.

Customer Needs Customization and Technical Support: Tailor-made Solutions

• Customized Solutions: Yuyao Hualong Welding Meter Factory not only provides standard argon pressure regulators but also offers customized pressure control solutions based on specific customer needs. Through in-depth collaboration with customers, Yuyao Hualong Welding Meter Factory's R&D team can solve various special gas pressure control problems, providing tailored products and services for different industries (such as petrochemicals, welding, laser cutting, etc.).
• Technical Support and Service: As a technology-driven company, Yuyao Hualong Welding Meter Factory's R&D team always puts the customer first in the design and application of gas pressure regulators, providing comprehensive technical support and after-sales service. This service is reflected not only in equipment design but also in rapid response to problems encountered during use, ensuring that any issues encountered by customers during operation are resolved promptly and that the production process proceeds smoothly.

Environmental Adaptability: Adaptable to High and Low Temperature Operating Conditions

• Stability at High and Low Temperatures: In industrial processes such as welding and cutting, argon pressure regulators may operate for extended periods in high or low temperature environments. Yuyao Hualong Welding Meter Factory's argon pressure regulators are designed with this in mind, using materials resistant to high temperatures and low-temperature embrittlement to ensure stable operation even in environments with drastic temperature changes.
• Temperature Control System: Through precise temperature control design and an internal heat exchange system, Yuyao Hualong Welding Meter Factory's argon pressure regulators effectively prevent performance instability caused by excessively high or low ambient temperatures, maintaining efficient gas pressure control.
